Domain Crawling DAGs and Operators

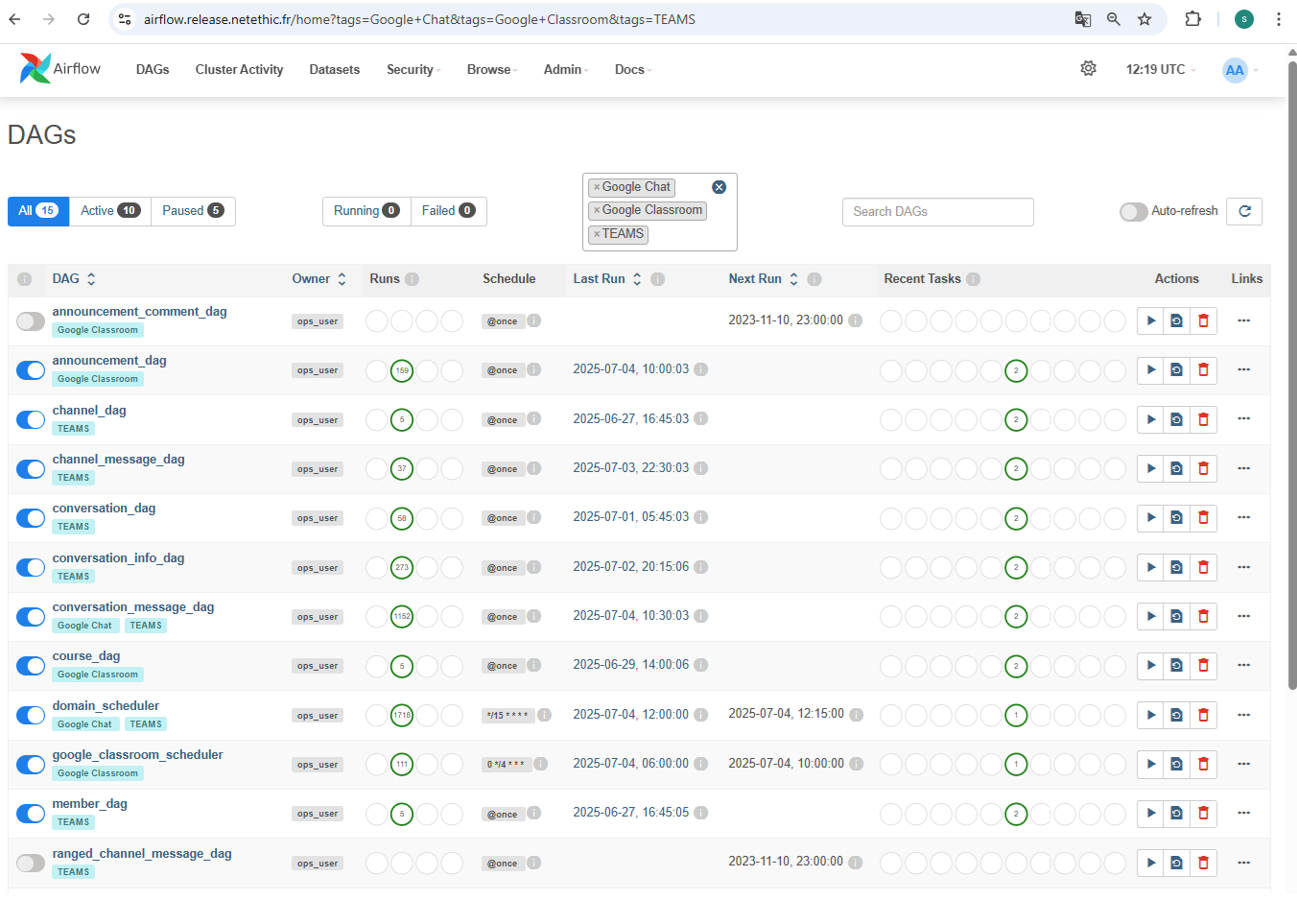

In this section we are going to present the list of dag that are responsible for collecting data from Domain drivers (Microsoft Teams, Google Chat, Google Classroom) that are presented in the figure below:

alt text

Each dag that concerns the data collection for Domain part is Tagged with the platform name. You can used that to filter DAGs using the TAG in Airflow UI to only have to DAGs related to the plaltform you want. Those dags are not periodic tasks they are lunched once by the scheduler and they are defined under the structure represented below.

├── dags
    ├── crawl
    |   ├── domain_drivers
    |   |   ├── announcement_dag.py
    |   |   ├── BaseDag.py
    |   |   ├── channel_dag.py
    |   |   ├── conversation_dag.py
    |   |   ├── conversation_info_dag.py
    |   |   ├── conversation_message_dag.py
    |   |   ├── course_dag.py
    |   |   ├── member_dag.py
    |   |   ├── message_dag.py
    |   |   ├── new_announcement_comment.py
    |   |   ├── ranged_channel_message_dag.py
    |   |   ├── ranged_conversation_message_dag.py
    |   |   ├── space_dag.py
    |   |   └── update_space_dag.py

BaseDAG

The BaseDAG is a custom version of Airflow’s DAG used to simplify and standardize all crawling workflows. It sets common settings like start date, timeout, and tags so you don’t have to repeat them. It also includes two useful features: - print_context: logs and stores the input data (like account info) at the start of the DAG - cleanup_xcom: automatically cleans up temporary data (XCom) after the DAG finishes

Crawling DAGs

The crawling Dags are responsible for collecting data, each for a different task. They uses custom operators that will be explained in the next part.

BaseCrawlOperator

This operator implements the shared pipeline logic. It represents the commun steps to follow for the different crawl jobs:

  1. Driver Initialization

    • Loads the domain and credentials.
    • Creates a driver Instance (Teams, Google Chat, etc.) via DomainDriverManager

  2. Iterate Over Jobs

    • Jobs are passed via XCom.
    • For each job:
      • Set job state to running
      • Execute the crawl() method (task-specific logic)
      • Set job state to pending (if success) or failed (if error)
      • Update execution metadata for re-scheduling

  3. Error Handling

    • If any job fails, logs are sent to elastic search and Teams Channel
    • Job state is updated to failed

  4. Execution Time

    • After successful crawl, the operator records how long it took and save the execution time in domain_execution_time collection

Child Operators

Each child operator defines:

  • get_frequency() : how often the task should be run
  • crawl(job) : how to retrieve, process, and store data for the specific task

List of crawling operators:

MemberOperator

  • collects domain members
  • Inserts or updates domain_member records
  • Creates conversation jobs for new members

ChannelOperator

  • Collects Microsoft Teams channels
  • Saves or updates them in domain_channel
  • Links channel members via channel_member

ConversationOperator

  • Gets Users conversations (for Google Chat Spaces are considered as conversations)
  • Stores or updates them in domain_conversation.
  • Creats downstream jobs (conversation_info, conversation_message)

ConversationMessageOperator

  • Crawls messages and replies in conversations
  • Saves messages and replies in conversation_message (replies have the field parent_id not null)
  • Saves attachements

MessageOperator

  • Crawls messages in Teams channels
  • Stores messages in channel_message and replies in channel_message_reply.
  • Save attachements
  • Updates channel activity status

SpaceOperator (Google Chat)

  • Collects spaces and their members
  • Insert both in MongoDB as conversations and members
  • Links each member to the space

ConversationInfoOperator / SpaceInfoOperator

  • Used for updating metadata (like name, topic, creation date) for an existing conversation or space
  • Ensures that conversation members are updated

CourseOperator

  • Collects Google Classroom courses
  • For each course It collects the list of teacher and the list of students that are used to prepare the list of domain members and course members
  • Saves the member in a first order. Than, there is a delay of 1 min befor sending the courses. This wait time is added to make sure that the members are recieved and added in crawlserver befor the courses

AnnouncementOperator

  • Collects the announcement published in Google Classroom courses with their comments
  • Saves the announcements in course_announcement and comments in announcement_comment

  • Creats new_announcement_job if :

    • The nb_comments associated with the domain in the collection settings is greater than 0
    • The comments_retrieval associated with the course itself should be set to True
    • The announcement date is within 2 months from the actual date

NewAnnouncementCommentOperator

  • Collects the new comments for the announcements
  • Checks if the announcement date still with 2 month from the actual date. If it’s the case it will update the execution date and state of the job. Otherwise, it will delete the job
